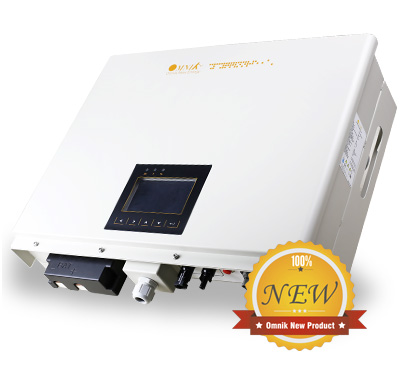

The brand-new Omnikhyd-3k-TL2 has 98.3% conversion efficiency; combines charge controller, storage inverter and solar inverter into one. It can automatically judge on-grid/ off-grid mode, connect into smart grid and realize peak load shifting. With perfect battery charge curve and protection plan, it is compatible with plumbic acid, Li-lon and so on.

Features

• Collection of house power consume by current measurement, Automatically control solar energy as self consume.
• Battery charge-discharge Power up to 3kW, Real no electricity billing in the future.
• Has active and passive model, passive model can be done by different bus system.
• Battery voltage only 48V, reduce system costs.
• IP 65 protection, waterproof and dustproof.
• Real time monitoring of battery temperature and BMS system.
• Build in Wifi & GPRS as option, flexible monitoring via iPhone Android and Computer.
• 10 years warranty(5~15 years as option)

The brand-new Omnikhyd-3k-TL2 combains the charge controller, energy storage inverter and PV inverter in one. It can recognize the on-grid and off-grid mode automatically in oder to shave the peak and fill the valley.It realizes a perfect battery charging curve and protection schemes.

Topology: Transformerless
Max. DC-voltage: 500 V
Max. apparent AC power: 3300 W
Max. Efficiency: 98.3 %
